Pulsar Axion Key XM22
- Magnification: 2.0x to 8.0x (4x Digital Zoom)
- Horizontal Field of View: 10°x7.5°
- Detection Range: 950m
- Thermal Sensor: 320×240 12µm
- Operating Temperatures: -25°C to +40°C
Out of stock

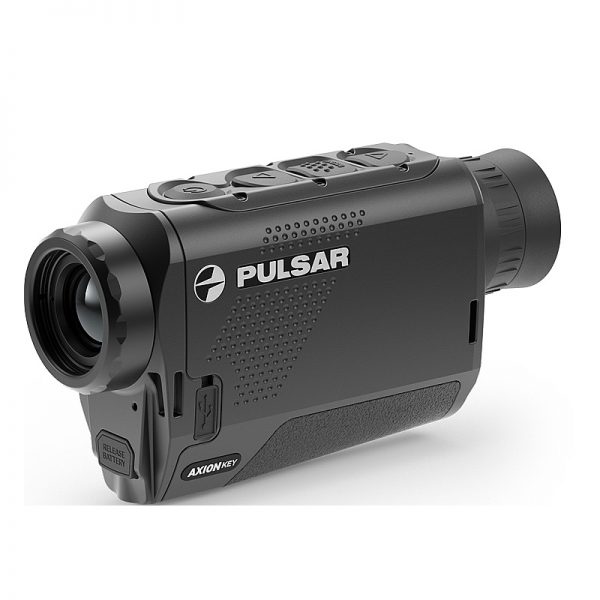

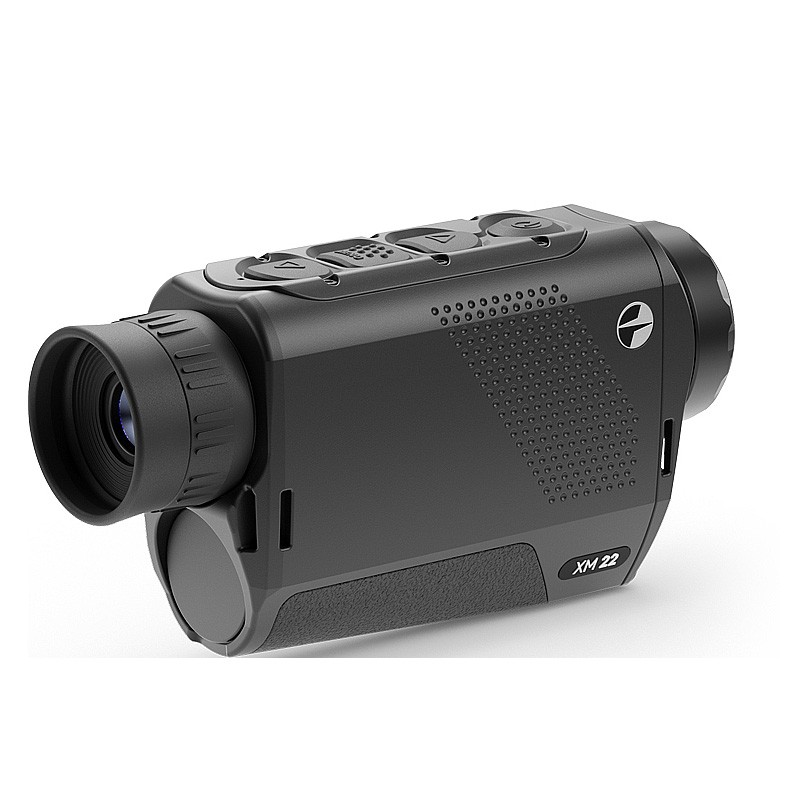

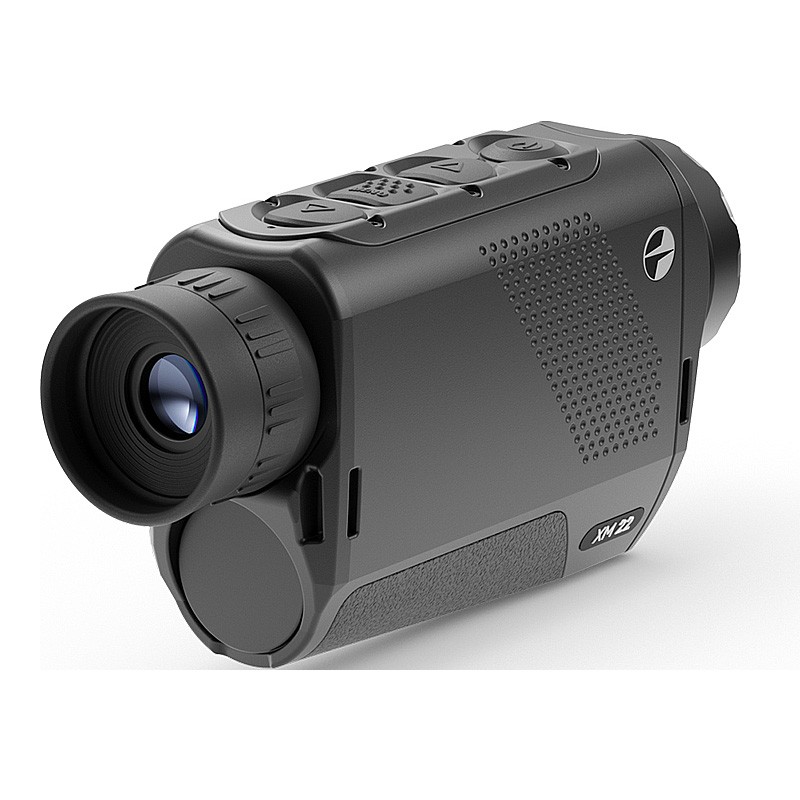

The Axion Key is an ultra-compact, lightweight, handheld thermal imaging monocular, that is available in two models; Key XM22 and the Key XM30. With detection ranges of up to 950m-1200m (dependent on model) and a magnification of 2.0x-8.0x with optimal 4x digital zoom.
The Axion Key XM22 has many new and important features, first and foremost is its sensor. The Axion Thermal Imaging Monocular uses a new 320×240 thermal sensor with a 12µm pixel pitch, which also helps to reduce overall unit size.
This reduction in pixel pitch will result in images having smoother edges, more detailed thermal mapping and offer a greater ability to recognise and identify objects over an equivalent sized sensor with a 17µm pixel pitch.
The Axion Key XM22 is perfectly suited to outdoor conditions, with a robust magnesium bodyshell, an IPX7 protection rating (fully waterproof), 960×720 LCOS micro-displays and can perform in both hot & freezing temperatures.
The device also comes equipped with its own internal stadiametric rangefinder, which helps aid observers in estimating target distances with the height of known objects. Additionally, Axion units have up to eight colour palettes to help enhance observation in varying conditions.
Picture-in-Picture (PiP) mode, upon activation, displays a second image with magnification in the top part of the Axion’s display screen. This small image helps to zoom in on a target while retaining the rest of the field of view, maximising situational awareness.
The Axion has an instant start-up and an instant ‘display-off’ mode, which helps to save energy and prolong the operation time of the unit and its dedicated B-Pack Mini Power System. The APS Battery Pack system offers an ultra-lightweight, quick-change power option that provides up to 4 hours of operating time to Axion units. APS Battery Packs can be charged by USB through its intended unit or an APS Battery Charger (PLEASE NOTE: The APS Battery Charger is sold separately for Axion Key models.
